The Kortexino Bot
3D print your own emotion-controlled smart robot
create your own web page for free
Powered by the
Kortexino app

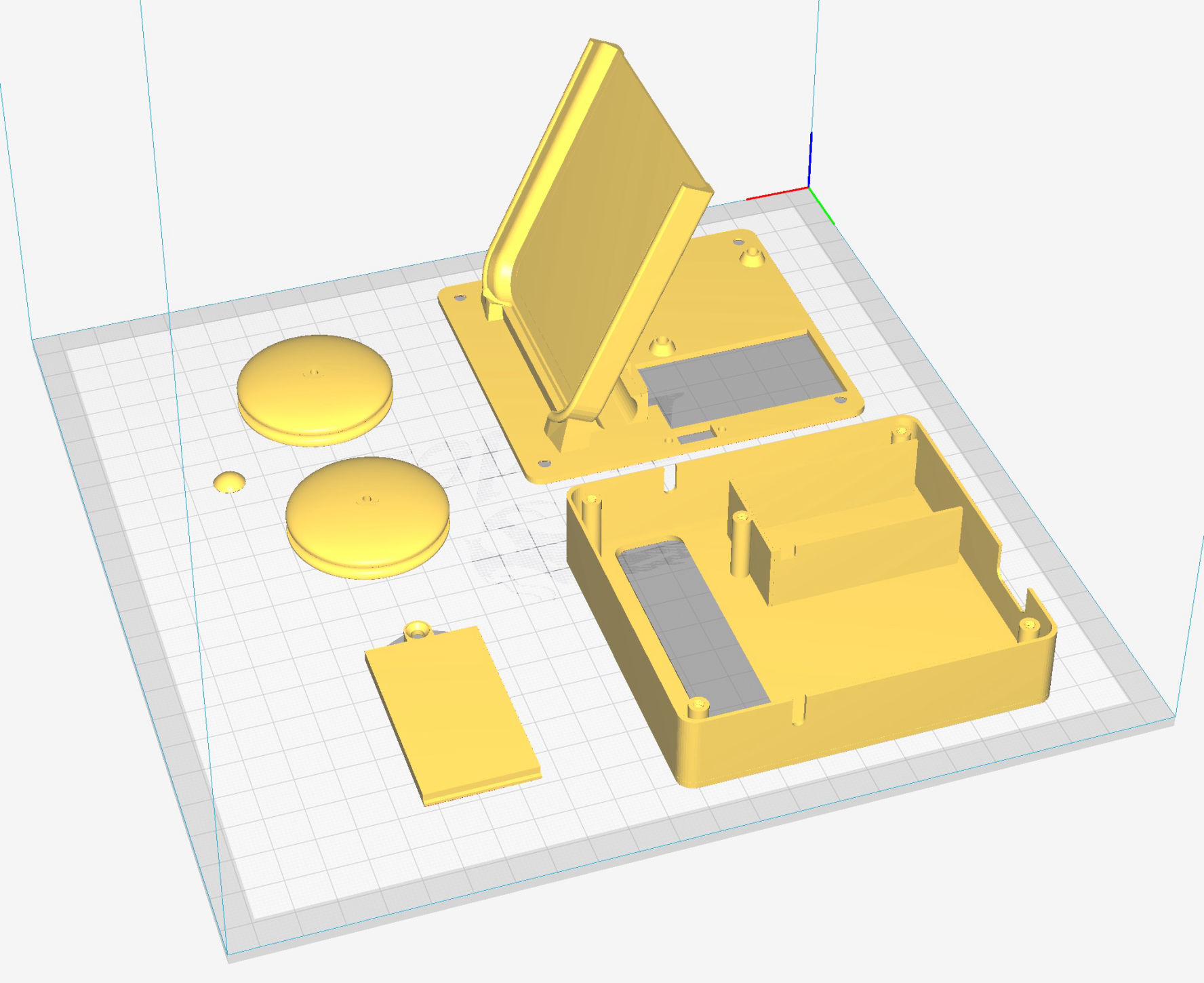

3D printed parts
KORTEXINO
Home
Kortexino App
Kortexino Bot
Coding Challenges
API Reference
Prinatable Manual (pdf)
Downloads
Support
Download from iTunes
For iPhone X and iPhone Xs
KORTEXINOBOT BOTTOM X
KORTEXINOBOT TOP X
KORTEXINOBOT LID
KORTEXINOBOT NOTCH
KORTEXINOBOT WHEEL (print 2)
For iPhone Xr
KORTEXINOBOT BOTTOM Xr
KORTEXINOBOT TOP Xr
KORTEXINOBOT LID
KORTEXINOBOT NOTCH
KORTEXINOBOT WHEEL (print 2)
For iPhone Xs Max
KORTEXINOBOT BOTTOM Max
KORTEXINOBOT TOP Max
KORTEXINOBOT LID
KORTEXINOBOT NOTCH
KORTEXINOBOT WHEEL (print 2)
Other parts and tools
8x M2.5 countersunk screws 11mm length or shorter
3x M2.5 nuts
2x M2 buttoned screws 8-10mm length
2x M2 nuts
2x silicone O-ring 45mmx38mmx3.5mm (for wheels)
2x N30 motor 300rpm DC 6V
1x SS-12F15G6 SPDT panel switch
1x 9V battery snap connector with plain wire ends
1x 9V battery
1x Romeo BLE mini
Wires and soldering equipment
The Kortexino Bot requires iPhone X or later.
Check out the
manual
for assembly information.
The Kortexino Bot on
Thingyverse
